Complete Dial Indicator Shaft Alignment System


Complete Dial Indicator Shaft Alignment System
The complete REACT System is the most cost-effective and efficient machinery alignment systems available anywhere. The REACT System combines the most versatile and sturdy stainless steel hardware in the industry along with a user friendly alignment computer. It takes the once complicated task of shaft alignment and simplifies it by giving accurate and exact recommended movements at the feet of the machine to be aligned. Thus saving countless hours of "trial and error" alignment. You can perform both the "Rim/Face" method as well as the "Reverse Indicator" method with the same hardware. The system accommodates shafts from 7/8" to 9-1/2" and includes all the necessary hardware, clamps, chains, etc. all packed in a sturdy aluminum carrying case (Note: The computer runs off of rechargeable batteries.) * SA-2 is currently unavailable. Please call or email for current price and delivery.

Product Features

  • Handheld computer
  • 8 MB Memory
  • HotSync USB or Serial cradle
  • Stylus
  • Palm Desktop software supports Windows 9x, 2000, XP PC's
  • Software link to Microsoft Outlook for Windows
  • AAA batteries

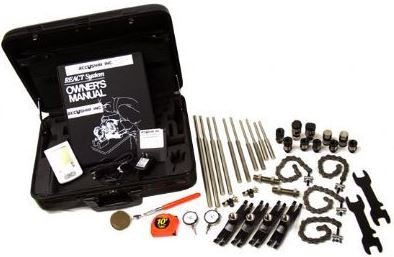

React SA-2 Components
Performs Rim/Face & Reverse Indicator Alignment methods. Works on shaft/coupling diameters from 7/8” up to 9-1/2”. Spans distances up to 14” across the coupling.
Contains the following:

Part #

Quantity

Description

VA-1

1

NEW alignment computer

M-3

1

Aluminum carrying case

CH-10

4

10” long bracket base chain

M-4

1

Protective foam insert for case

M-5

1

English/Metric measuring tape

M-7

2

Three-way open end wrench

M-9A

1

Instruction manual

RA-6

4

Universal mounting bracket base

RC-3

6

5/8” stainless steel jam nut

RB-1

4

1” long extension post

RB-2

2

1.5” long extension post

RC-1

2

Adjustable rod clamp assembly

RD-1

2

Adjustable target post

RD-2

2

3” long threaded rod

RD-3

2

Low profile target

M-6

1

Industrial swivel mirror

DI-3

2

AGD Group 1 Mini Dial Indicator

MC-1

2

Standard dial indicator clamp

RF-6

2

6” long dial indicator rod

RF-8

2

8” long dial indicator rod

RF-10

2

10” long dial indicator rod

RF-12

1

12” long dial indicator rod

Rim/Face Method

Reverse Indicator Method

Operation Overview

Align Machines and Save Results in 3 Easy Steps

1.  Enter Dimensions and
     Dial Indicator Readings.

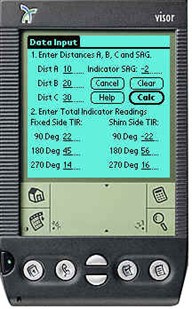

1.  Enter Dimensions and Dial Indicator Readings.

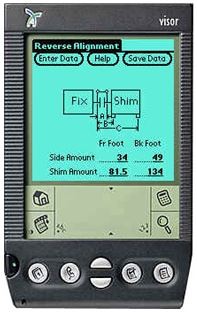

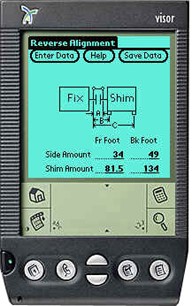

2.  Calculate Alignment and make Alignment Adjustments.

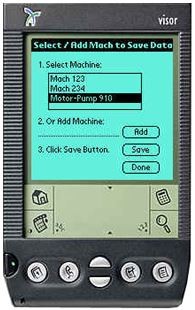

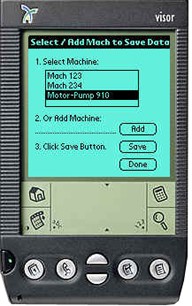

3. Save Alignment Data  in local Database and upload Data to PC.

(Note: The computer runs off of rechargeable batteries.)

HA-2
Packaged Dimensions: 20"L x 17"W x 10"H

SA-2
Packaged Dimensions: 20"L x 17"W x 10"H

SKU Details


Sku Images SKU Description Quantity ADDTOCARTDETAILSANDPRICE
SA-2 (With Computer) 1

HA-2 (Same as the SA-2 but without the computer) 1
