5"X5" (D) Shim Kit For Use With 1" to 1-5/8" Hold Down Bolts


5"X5" (D) Shim Kit
For use with NEMA Motor Frame Numbers 502-509, 582-589, 681-689

Type 304/18-8 Stainless Steel Shims.

Type 304/18-8 Stainless Steel Shims

Other available Sizes: AA (1.50"x1.50"), E (6"x6"), H (8"x8") Call for current pricing.

Kit Packaging
THICKNESS
MILS = thousandths
of an inch		Full Kit
in Toolbox		Starter Kit
in toolbox		Mini Kit
in toolbox		Service Kit in
reusable carton		Installer Kit in
reusable carton
.001"20 each20 each10 each10 eachx
.002"20 each20 each10 eachxx
.003"20 each20 each10 each10 eachx
.004"20 each20 each10 eachxx
.005"20 each20 each10 each10 eachx
.010"20 each20 each10 each10 eachx
.015"20 each10 each10 each10 eachx
.020"20 each10 each10 each10 eachx
.025"20 each10 each10 each10 eachx
.050"20 each4 each10 each10 each12 each
.075"20 each4 each10 eachx12 each
.100"20 each4 each10 eachx12 each
.125"20 each4 each10 eachx12 each


SKU Details


Sku Images SKU Description Slot Width is
Slightly Larger
Than...		 Rec. Bolt Size ADDTOCARTDETAILSANDPRICE

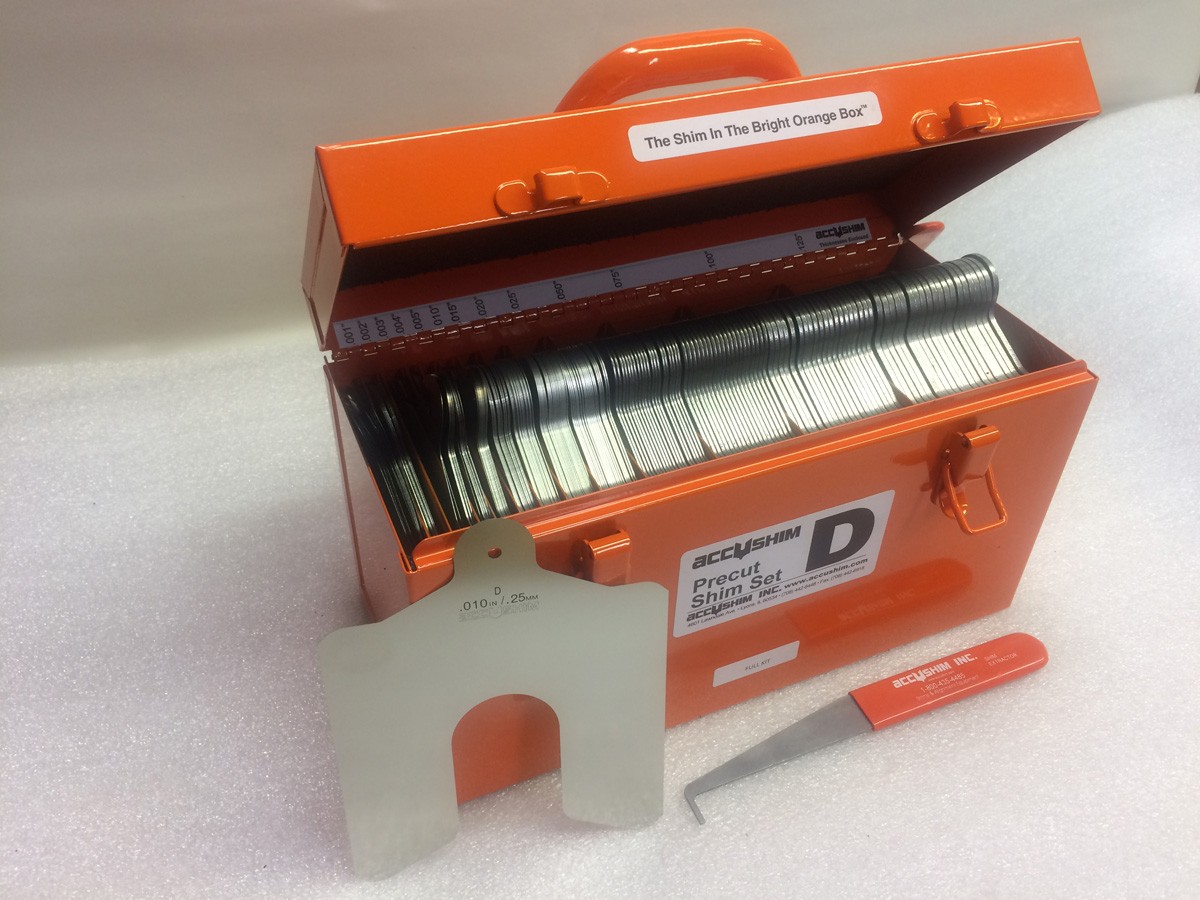

D-FULL KIT Size D-5”x5” (260) piece Shim Kit w/Shim Extractor in a metal Shim Box. (65 Lbs./Kit) 1-5/8” 1” to 1-5/8”

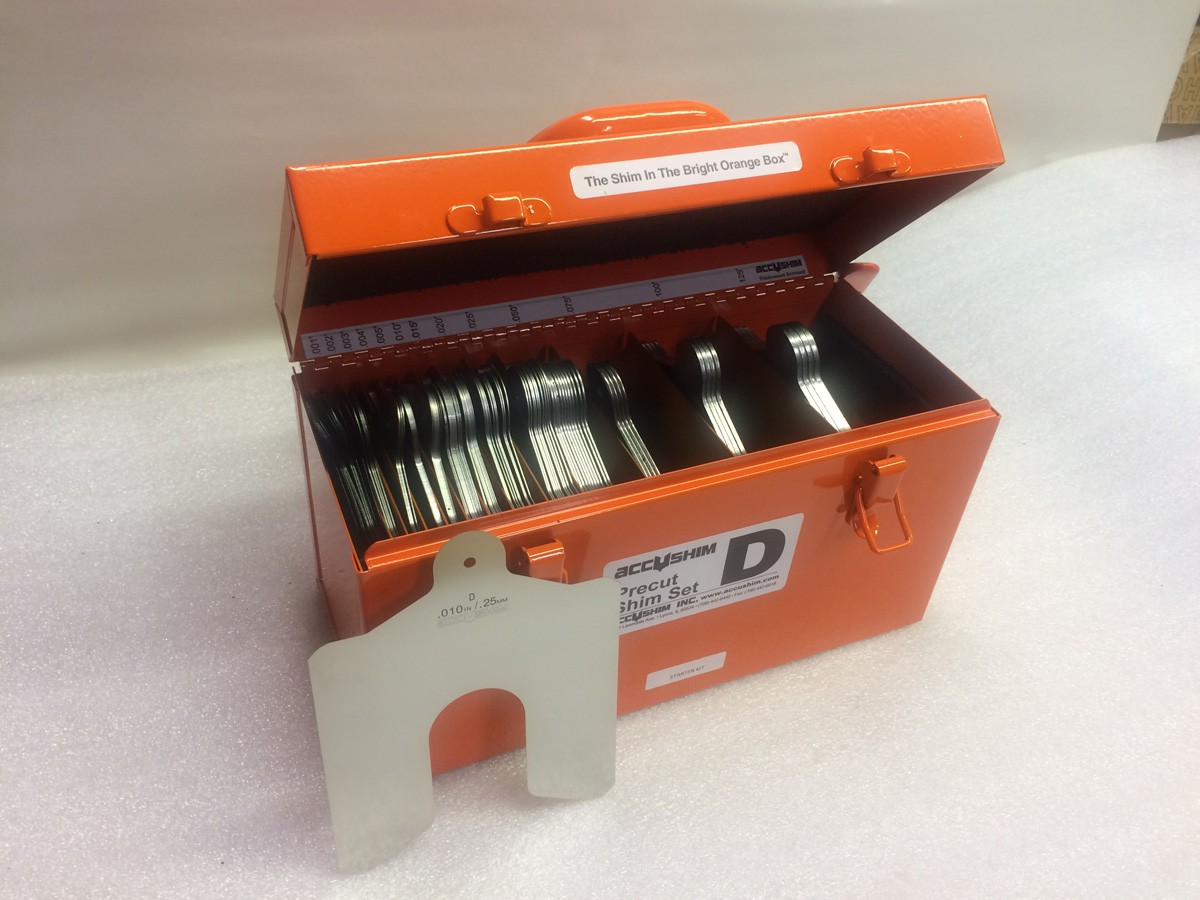

D-STARTER KIT Size D-5”x5” (166) piece Shim Kit in a metal Shim Box. (25 Lbs./Kit) 1-5/8” 1” to 1-5/8”

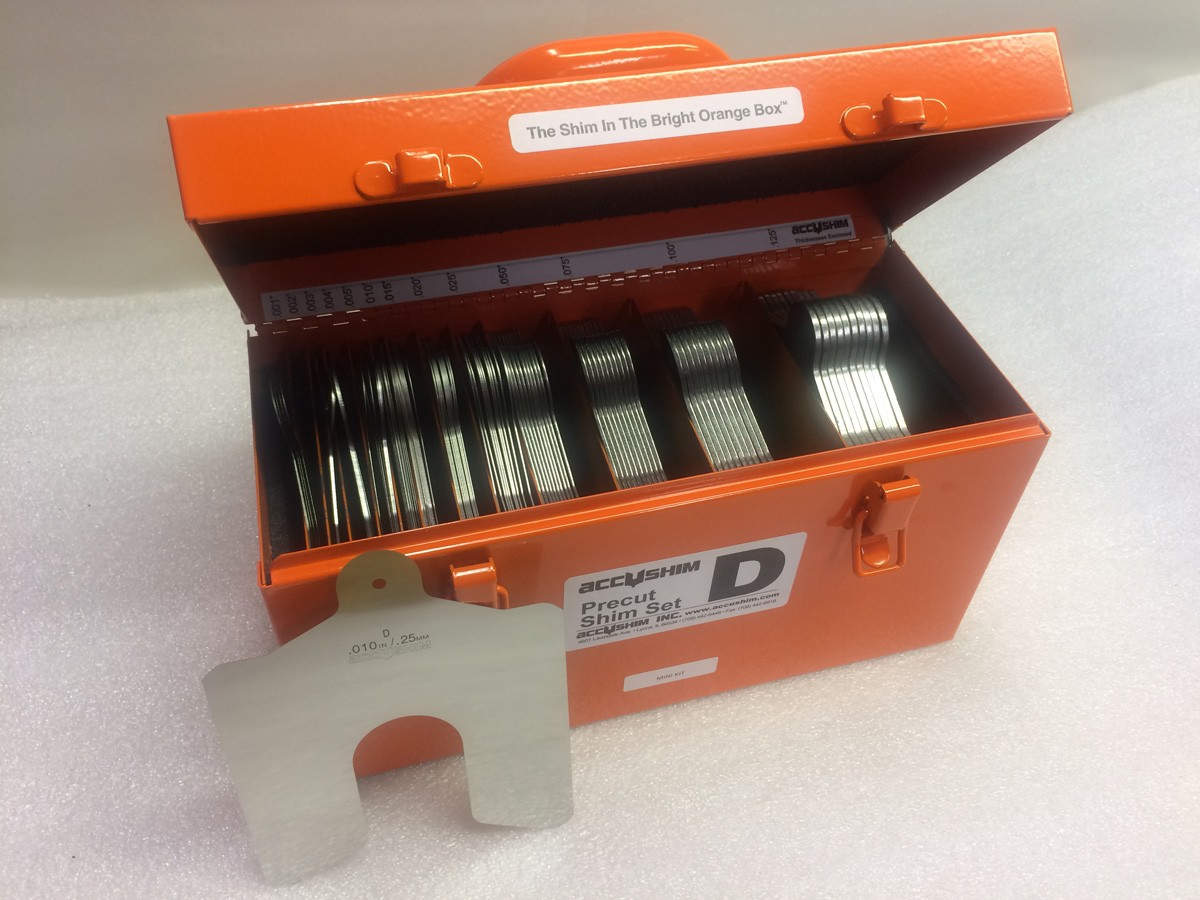

D-MINI KIT Size D-5”x5” (130) piece Shim Kit in a metal Shim Box. (36 Lbs./Kit) 1-5/8” 1” to 1-5/8”

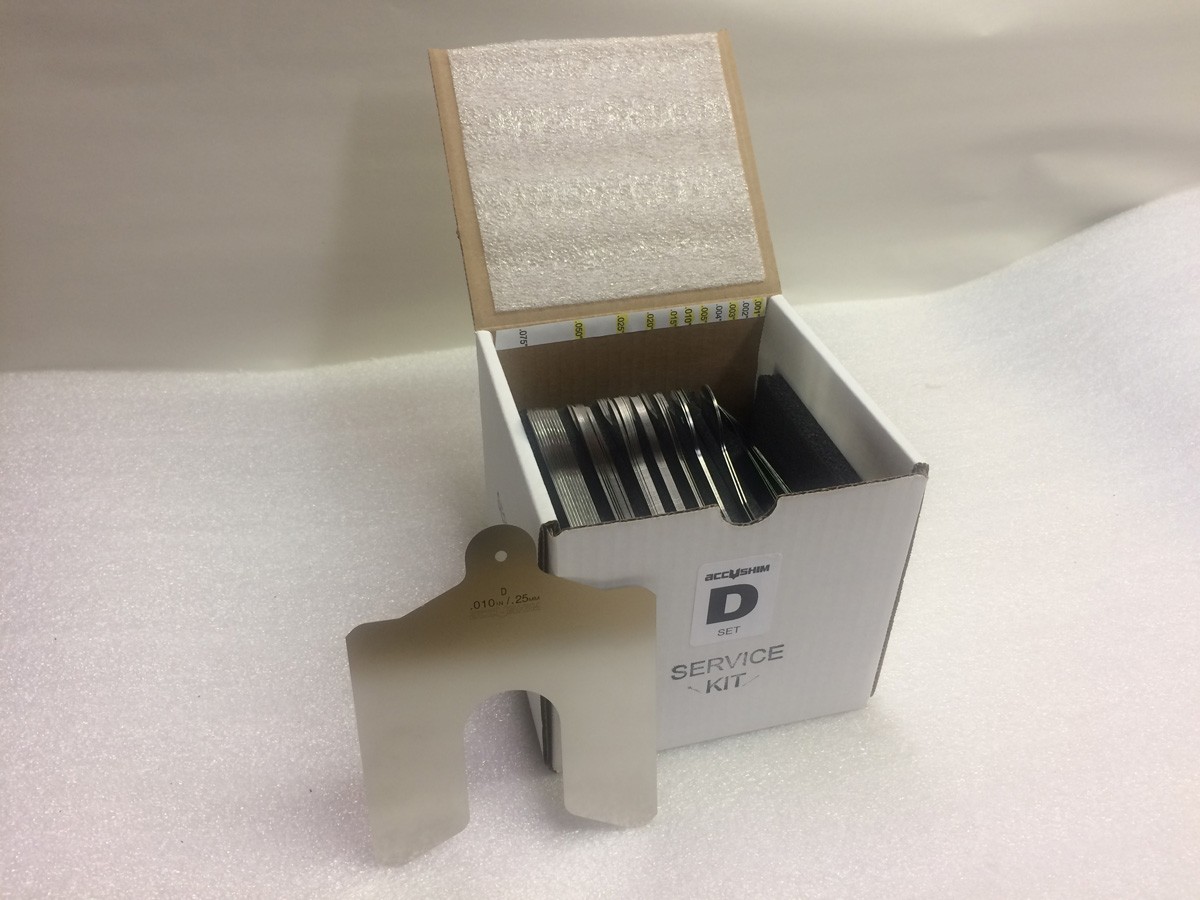

D-SERVICE KIT Size D-5”x5” (80) piece Shim Kit. Packed in a reusable carton. (7 Lbs./Kit) 1-5/8” 1” to 1-5/8”

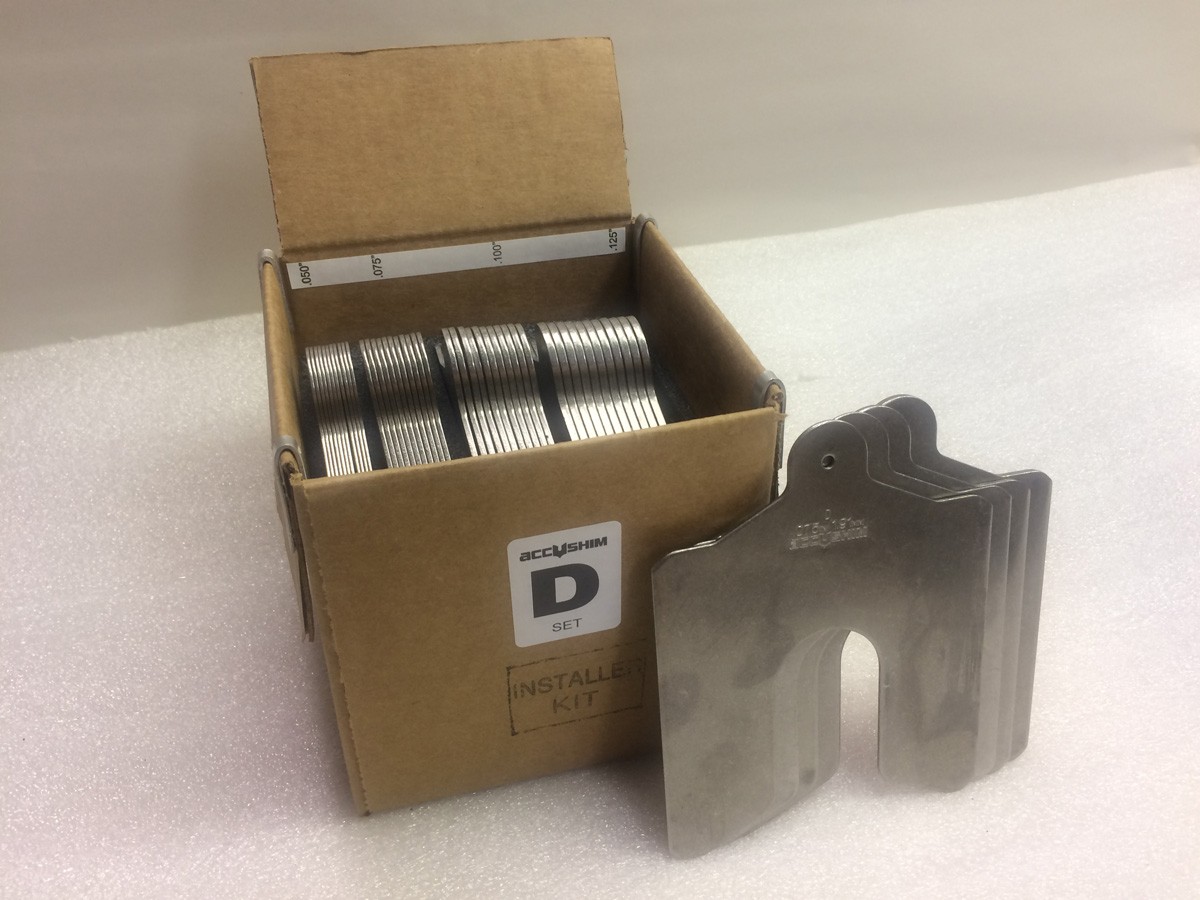

D-INSTALLER KIT Size D-5”x5” (48) piece Shim Kit. Packed in a reusable carton. (22 Lbs./Kit) 1-5/8” 1” to 1-5/8”

D-TOOL BOX ONLY Size D-5”x5” Metal Shim Box only. (8 Lbs./Box) 1-5/8” 1” to 1-5/8”
