4"X4" (C) Shim Kit for Use With 3/4" to 1-1/4" Hold Down Bolts



For use with NEMA Motor Frame Numbers 203, 204, 224, 225,363-369, 403-409, 443-449, 504-509

Type 304/18-8 Stainless Steel Shims

Other available Sizes: AA (1.50"x1.50"), E (6"x6"), H (8"x8") Call for current pricing.

Kit Packaging
THICKNESS
MILS = thousandths
of an inch
Full Kit
in Toolbox
Starter Kit
in toolbox
Mini Kit
in toolbox
Service Kit in
reusable carton
Installer Kit in
reusable carton
.001"20 each20 each10 each10 eachx
.002"20 each20 each10 eachxx
.003"20 each20 each10 each10 eachx
.004"20 each20 each10 eachxx
.005"20 each20 each10 each10 eachx
.010"20 each20 each10 each10 eachx
.015"20 each10 each10 each10 eachx
.020"20 each10 each10 each10 eachx
.025"20 each10 each10 each10 eachx
.050"20 each4 each10 each10 each12 each
.075"20 each4 each10 eachx12 each
.100"20 each4 each10 eachx12 each
.125"20 each4 each10 eachx12 each


SKU Details



Sku Images SKU Description Slot Width is
Slightly Larger
Than...
Rec. Bolt Size ADDTOCARTDETAILSANDPRICE

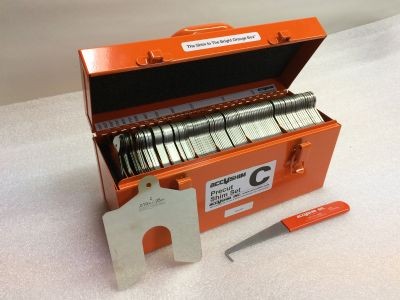

C-FULL KIT Size C-4”x4” (260) piece Shim Kit w/Shim Extractor in a metal Shim Box. (42 Lbs./Kit) 1-1/4” 3/4” to 1-1/4”

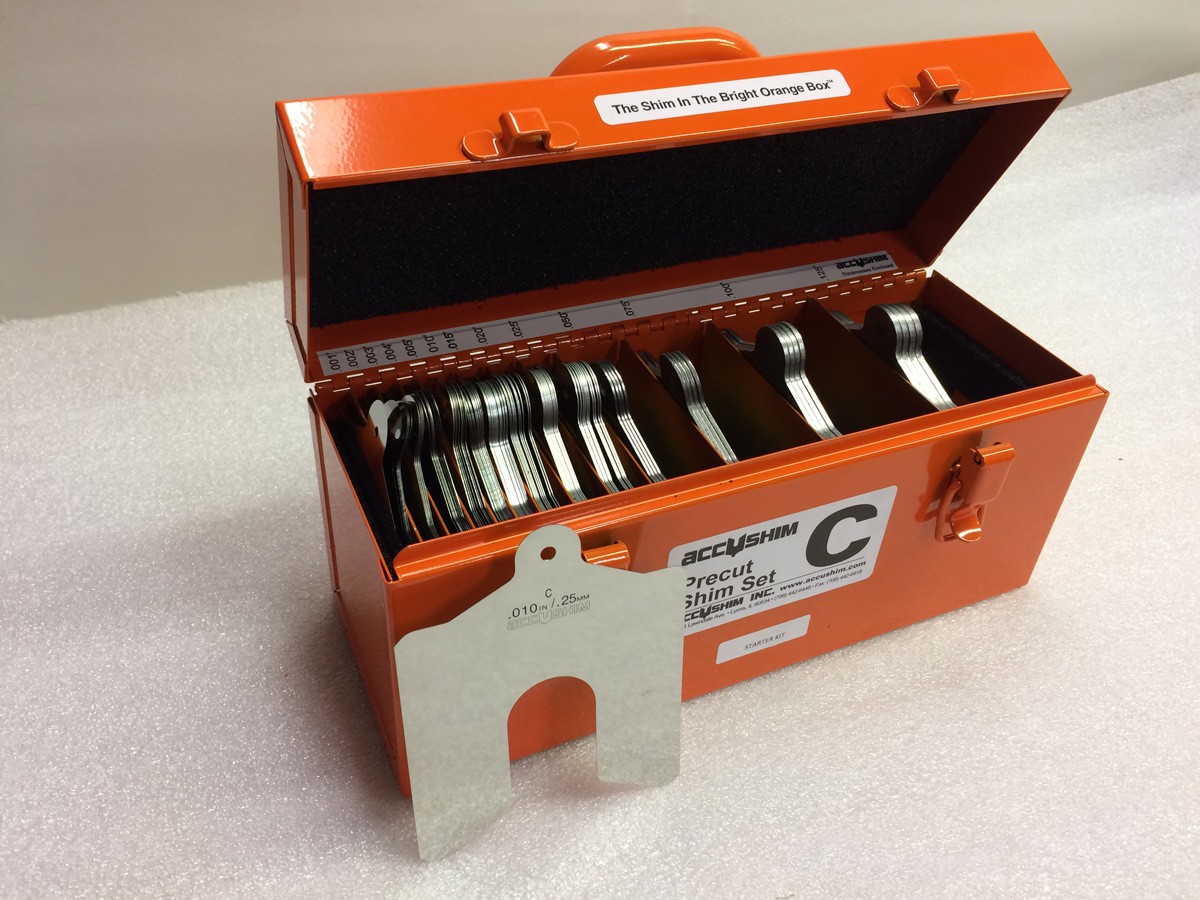

C-STARTER KIT Size C-4”x4” (166) piece Shim Kit in a metal Shim Box. (18 Lbs./Kit) 1-1/4” 3/4” to 1-1/4”

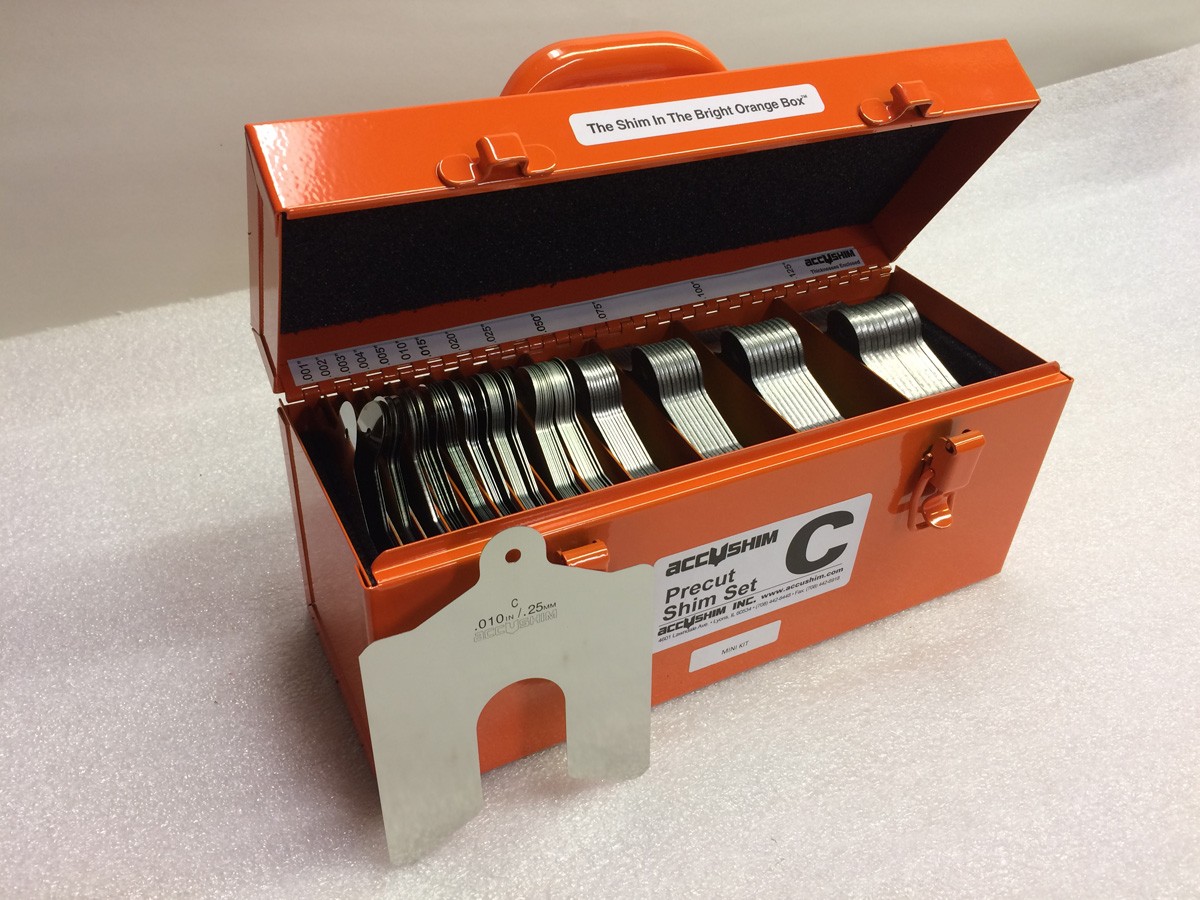

C-MINI KIT Size C-4”x4” (130) piece Shim Kit in a metal Shim Box. (25 Lbs./Kit) 1-1/4” 3/4” to 1-1/4”

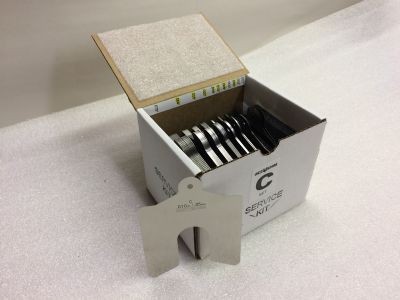

C-SERVICE KIT Size C-4”x4” (80) piece Shim Kit. Packed in a reusable carton. (5.75 Lbs./Kit) 1-1/4” 3/4” to 1-1/4”

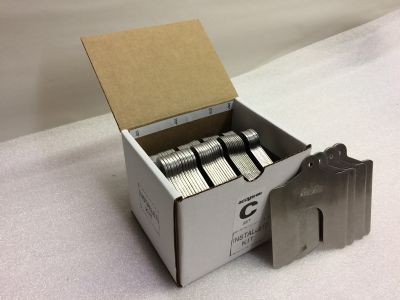

C-INSTALLER KIT Size C-4”x4” (48) piece Shim Kit. Packed in a reusable carton. (17 Lbs./Kit) 1-1/4” 3/4” to 1-1/4”

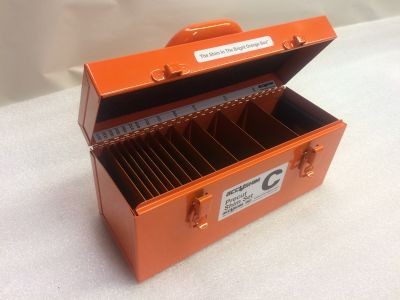

C-TOOL BOX ONLY Size C-4”x4” Metal Shim Box only. (6 Lbs./Box) 1-1/4” 3/4” to 1-1/4”
